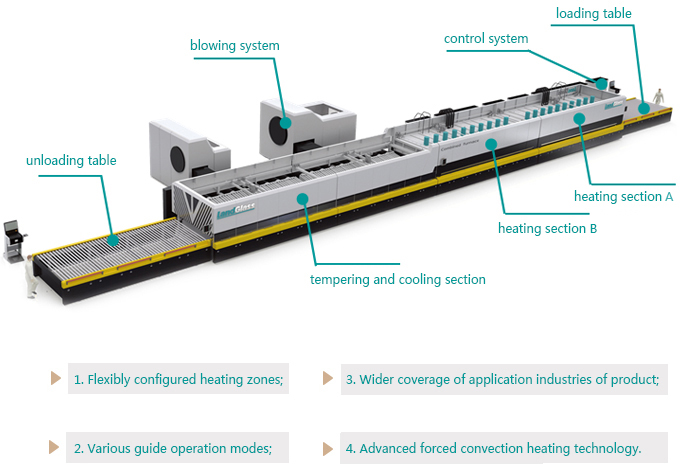

Combined flat tempering furnace of LD-AT series has two heating zones arranged in sequence. According to the process requirements, its heating manner may be a free combination of convection and radiation. According to the quality requirements of the products, its cooling part may consist of one or more air grids. A variety of combination manners and operating modes of the equipment form different performance characteristics of the combined tempering furnace, which can most precisely meet the requirements on products of different users .
Features
1. Flexibly configured heating zones.
2. Various guide operation modes.
3. Wider coverage of application area.
4. Advanced forced convection heating technology.
2. Various guide operation modes.
3. Wider coverage of application area.
4. Advanced forced convection heating technology.
Customer Site
-
Hans Suzhou Building Materials Group
- Furnace Model:A2460T0、A2442B25
- Operation Status:Great
- Comment:Great
- Furnace Model:A2460T0、A2442B25
-
Jin Jing Group Co.,Ltd
- Furnace Model:A2442T3、A2450T3、A1742T3
- Operation Status:Great
- Comment:Great
- Furnace Model:A2442T3、A2450T3、A1742T3
- LD-AT
- LD-AT0
- LD-AT3
-
Productivity is calculated on 5mm clear glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.LD-AT AirStream Combined Flat Glass Tempering Furnace Types Max.
dimensionMin.
dimensionGlass
thicknessProcuctivity
(loads/h)Installed
capacity(KVA)A2436T 2440X3600 200X400 4-19 18-22 1400 A2442T 2440X4200 200X400 4-19 18-22 1600 A2450T 2440X5000 200X400 4-19 18-22 1800 A2460T 2440X6000 200X400 4-19 18-22 2200 A2480T 2440X8000 200X400 4-19 18-22 2800 A3050T 3000X5000 300X500 5-19 18-22 2300 A3080T 3000X8000 300X500 5-19 18-22 3500 -
Productivity is calculated on 5mm clear glass and 6 mm Low-E glass (E=0.08) with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.LD-AT0 JetConvection Combined Flat Glass Tempering Furnace Types Max.
dimensionMin.
dimensionGlass
thicknessProcuctivity
(loads/h)Installed
capacity(KVA)Clear glass Low-E A2436T0 2440X3600 200X400 4-19 26-30 21-26 1400 A2442T0 2440X4200 200X400 4-19 26-30 21-26 1600 A2450T0 2440X5000 200X400 4-19 26-30 21-26 1800 A2460T0 2440X6000 200X400 4-19 26-30 21-26 2200 A2480T0 2440X8000 200X400 4-19 26-30 21-26 2800 A3050T0 3000X5000 300X500 5-19 26-30 21-26 2300 A3080T0 3000X8000 300X500 5-19 26-30 21-26 3500 -
Productivity is calculated on 5mm clear glass and 6 mm Low-E glass (E=0.08) with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.LD-AT3 JetConvection Combined Flat Glass Tempering Furnace Types Max.
dimensionMin.
dimensionGlass
thicknessProcuctivity
(loads/h)Installed capacity
(KVA)Clear glass Low-E A2436T3 2440X3600 200X400 4-19 20-24 18-22 1400 A2442T3 2440X4200 200X400 4-19 20-24 18-22 1600 A2450T3 2440X5000 200X400 4-19 20-24 18-22 1800 A2460T3 2440X6000 200X400 4-19 20-24 18-22 2200 A2480T3 2440X8000 200X400 4-19 20-24 18-22 2800 A3050T3 3000X5000 300X500 5-19 20-24 18-22 2300 A3080T3 3000X8000 300X500 5-19 20-24 18-22 3500
