Double Bent Bi-directional Furnaces

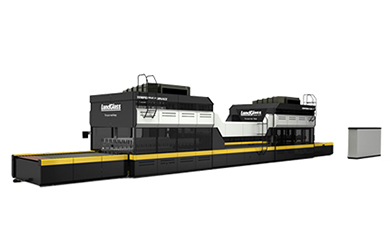

LD-BB AirStream Double Bent Bi-direction Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Combination of radiation and assisstant convection heating.
On-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • The B Bending & Tempering equipment range is greatly welcomed due to the ideal curve and good repeatability of the end product. LandGlass equips the heating furnace with a large size B Bending & Tempering section on one side and a small size B Bending & Tempering section on the other side, making this BB Series a Bi-Directional Double Bending & Tempering Furnace. By loading the glass in different directions, the machine can process large size bent tempered glass for the architectural market and small size bent tempered glass for furniture.

    AirStreamTM Radiation Heating plays a supportive role during the process. Compressed air is injected into the heating furnace to aid the heating process of the top surface of the glass, which ensures heating uniformity for on-line Low-E glass, and other glass types.

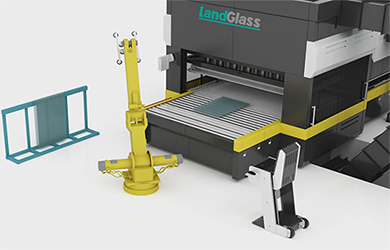

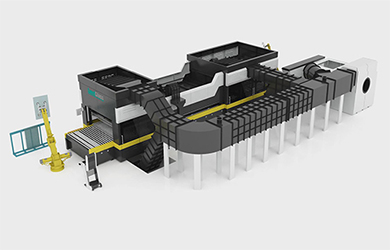

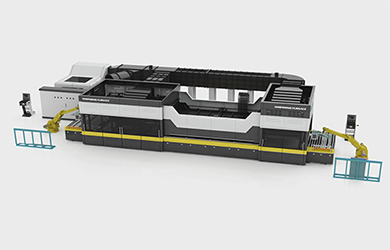

    LD-BB AirStreamTM Double Bent Bi-Directional Glass Tempering Furnace adopts AirStreamTM Heating Technology. It is equipped with two bent quenching sections at each side of the heating furnace. By loading glasses in different directions, the tempering line can temper different kinds of bent glass. The glass that can be tempered includes: on-line Low-E glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. It is equipped with a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can temper bent glasses of different dimensions and radii.

    2. It can temper the best quality large thick bent glass for the architectural market and a small thin bent glass for the automotive or furniture markets.
  • LD-BB AirStream Double Bent Bi-direction Glass Tempering Furnace
    Types
    Bent glass for building
    Bent glass for furniture
    Glass
    thickness
    Productivity
    (loads/h)
    Installed
    capacity(KVA)
    Max.
    dimension
    Min.
    dimension
            Max.
        dimesnion
          Min.
      dimension
    B2430B08/2
    2440xARC300
    300xARC500
    2440xARC800
    300xARC400
    4-19/450
    25-29
    800
    B2430B10/2
    2440xARC3000
    300xARC500
    2440xARC1000
    300xARC400
    4-19/500
    25-29
    1000
    B2430B15/2
    2440xARC3000
    300xARC500
    2440xARC1500
    300xARC400
    4-19/750
    25-29
    1000

    Productivity of bent glass for furniture is calculated on 5mm clear glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.

  • Company
    Elco Glass industries
    Location
    USA
    Company Profile

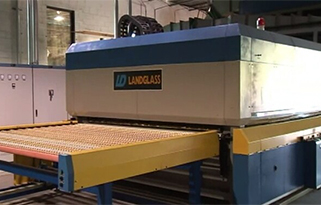

    Elco Glass industries in Lakewood, New Jersey, USA,is specialized in the manufacturing of safety glass used for architecture, furniture, doors and windows. The innovative company pays close attention the technological development of glass industries and has a cooperative relationship with LandGlass. The glass tempering furnace from LandGlass has helped Elco satisfy customers’ needs and win their acclaim.
    Furnace Type
    LD-BB Double Bent Bi-direction Glass Tempering Furnace
    Main Products
    Tempered glass for architecture, furniture, autos, doors and windows, etc.
