Bent Tempering Furnaces

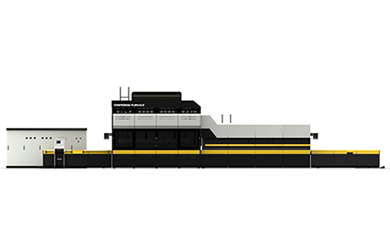

LD-E AirStream Double Curvature Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Combination of radiation and assisstant convection heating.
On-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case

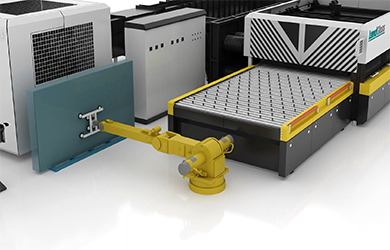

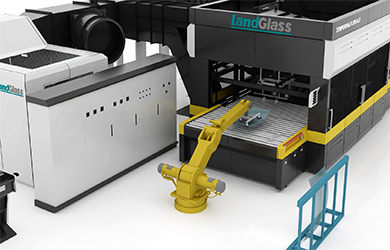

  • The design of LD-E Double Curvature Glass Tempering Furnace was inspired by the bending furnace. Glass is heated inside the furnace while moulded and tempered outside. Forming, tempering and unloading of glass are accomplished in a three-stage method. LandGlass has developed a more intelligent double curvature glass tempering furnace with high pressure blower instead of air compressor, developed together with the automatic chiller adjustment technology.

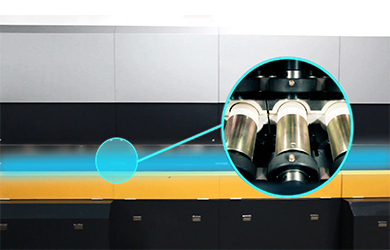

    AirStreamTM Radiation Heating plays a supportive role during the process. Compressed air is injected into the heating furnace to aid the heating process of the top surface of the glass, which ensures heating uniformity for on-line Low-E glass, and other glass types.

    LD-E AirStreamTM Double Curvature Glass Tempering Furnace adopts AirStreamTM heating technology. It Is suitable for tempering top-quality double curvature glass. Glass that can be tempered includes: on-line Low-E glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

  • 1. Molding technology and automatically-adjusted quenching technology, not only reduces the time spent in making chillers, it also reduces the cost of the final product.

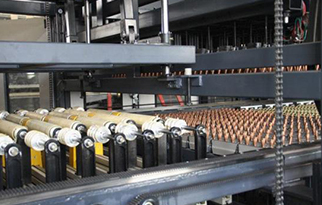

    2. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.

    3. It has a high degree of automation and reliability; it can bend and temper small volumes of highly accurate double curvature glass for the automotive market.
  • LD-E AirStream Double Curvature Glass Tempering Furnace
    Types
    Max.
    dimension
    Min.
    dimension
    Glass
    thickness
    Max. height of curvature
    Curvature
    accuracy
    Produciivity
    (loads/h)
    Installed
    capacity
    (KVA)
    E1610/2
    ARC1600xARC1000
    ARC500xARC400
    3.5-6
    120
    <2mm
    30-36
    800
    E2312/2
    ARC2300xARC1200
    ARC600xARC500
    4-6
    150
    <2mm
    30-36
    800
    Productivity is calculated on 4.0mm clear glass . Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited of space.
  • Company
    BSG Auto Glass Co.Ltd.
    Location
    Jiangsu, China
    Company Profile
    BSG Auto Glass Co.Ltd. is specialized in the production of various automobile glass. Owning several international leading production lines for high-end automobile glass, BSG Auto Glass Co.Ltd. is devoted to the developing, manufacturing and marketing of high-performance sound-proof and heat-proof automobile glass.
    Furnace Type
    LD-E Series Double Curvature Glass Tempering Furnace
    Main Products
    Foreside windscreen tempered glass, sidelight tempered glass for high-end cars, buses, trucks, campers.

    Glass Tempering Furnace-BSG-LandGlass    Glass Tempering Furnace-BSG-LandGlass
*
*
*
*
*
*
