Double Bent Bi-directional Furnaces

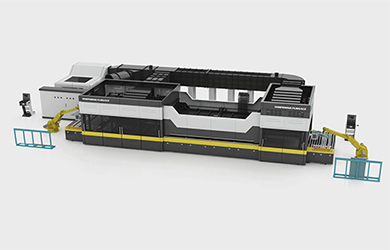

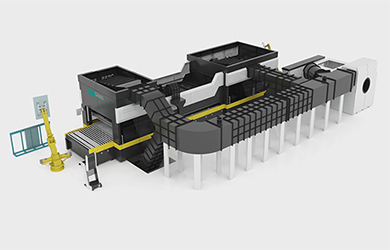

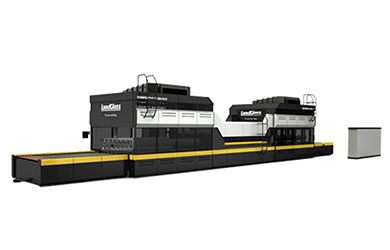

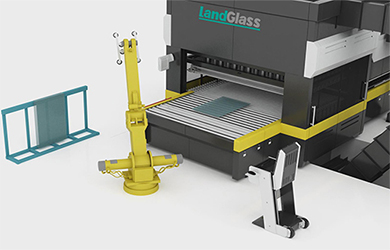

LD-BC JetConvection Plus Double Bent Bi-direction Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • The B bending & tempering furnace is more suitable to process small and medium-sized tempered glass while the C bending & tempering furnace is more suitable to process large-sized tempered glass. LandGlass decided to create the BC series double bent bi-directional bending & tempering furnace by combining a B and a C bending & tempering section at each side of the heating furnace. By loading the glass in different directions, the machine can process large size bent tempered glass for the architectural market and small size bent tempered glass for furniture.It is equipped with JetConvectionTM heating technology and can temper off-line Low-E and other high demand bent glass.

    JetConvection PlusTM Convection heating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass Jetconvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

    LD-BC JetConvection PlusTM Double Bent Bi-Directional Glass Tempering Furnace adopts JetConvection PlusTM Heating Technology. It is equipped with two bent quenching sections at each side of the heating furnace. By loading glasses in different directions, the tempering line can temper different kinds of bent glass. Glass that can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. It is equipped with a B and a C bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can temper bent glasses of different dimensions and radii.

    2. It can temper the best quality large thick bent glass for the architectural market and small thin bent glass for the automotive or furniture markets.

    3. Equipped with JetConvection PlusTM heating system, it can temper on-line and off-line Low-E (E=0.02) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

  • LD-BC JetConvection Plus Double Bent Bi-direction Glass Tempering Furnace
    Types
    Bent glass for building
    Bent glass for furniture
    Glass
    thickness
    Productivity
    (loads/h)
    Installed
    capacity(KVA)
    Max.
    dimension
    Min.
    dimension
    Max.
    dimension
    Min.
    dimension
    Clear
    glass
    Low-E
    B2408C36/2J+
    3600xARC2440
    400xARC600
    2440xARC800
    300xARC400
    4-19/450
    27-31
    25-29
    800
    B2412C42/2J+
    4200xARC2440
    400xARC600
    2440xARC1200
    300xARC400
    4-19/500
    27-19
    25-29
    1000
    B2415C50/2J+
    5000xARC2440
    400xARC600
    2440xARC1500
    300xARC400
    4-19/750
    27-31
    25-29
    1250
    Productivity of bent glass for furniture is calculated on 5mm clear glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.
  • Company
    Glasshape NZ
    Location
    New Zealand, Oceania
    Company Profile
    Glasshape Ltd is a highly successful and dynamic company that focuses on manufacturing glass products for the Architectural, Transport and Super Yacht Industries. Founded in 1986, Glasshape Ltd has mastered and refined the technology of curved and bent glass, tempered glass, laminated glass and double glazed glass. Glasshape has exported glass products to Australia, UK, USA, China, Chile, Turkey, Pacific Islands and Singapore, are well received by customers.
    Furnace Type
    LD-BC Double Bent Bi-direction Glass Tempering Furnace
    Main Products
    Safety glass, automobile glass, heavy machinery glass, etc.

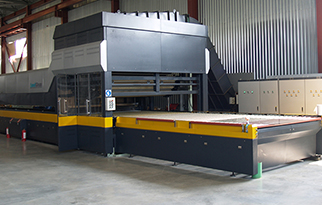

    Glass Tempering Furnace-Glasshape NZ-LandGlass    Glass Tempering Furnace-Glasshape NZ-LandGlass
*
*
*
*
*
*
