Double Bent Bi-directional Furnaces

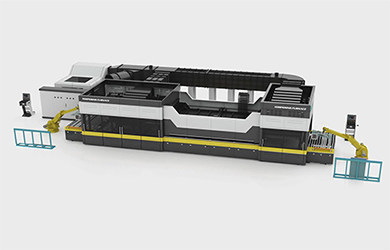

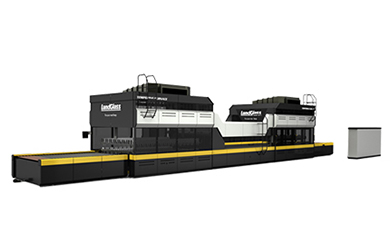

LD-BE AirStream Double Bent Bi-direction Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Combination of radiation and assisstant convection heating.
On-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • LandGlass produces the BE Series Double Bent Bi-direction Glass Tempering Furnace. It has both a B and an E bending and tempering section at each side of the heating furnace. By loading the glass in different directions, the machine can process single curvature bent glass for automotive sidelites with the B bending and tempering section or double-curvature glass like automotive backlites with the E bending and tempering section. It is a perfect choice for an automotive glass producer due to the reduced investment taking into account that one heating furnace serves both purposes.

    AirStreamTM Radiation Heating plays a supportive role during the process. Compressed air is injected into the heating furnace to aid the heating process of the top surface of the glass, which ensures heating uniformity for on-line Low-E glass, and other glass types.

    LD-BE AirStreamTM Double Bent Bi-Directional Glass Tempering Furnace adopts AirStreamTM Heating Technology. It is equipped with two bent quenching sections at each side of the heating furnace. By loading glasses in different directions, the tempering line can temper single curvature or double curvature bent glass. The glass that can be tempered includes: on-line Low-E glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

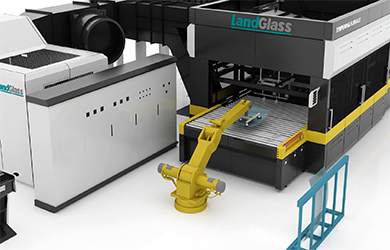

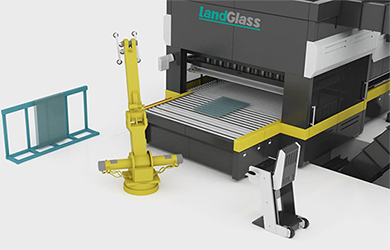

  • 1. It is equipped with a B and an E bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can process single curvature bent glass for automotive sidelites and double curvature bent glass for automotive backlites.

    2. It can temper small volumes of high quality single curvature and double curvature bent tempered glasses for vehicles.
  • LD-BE AirStream Double Bent Bi-direction Glass Tempering Furnace
    Types
    Single
    Curvature
    Max.size
    Single
    Curvature
    Min.size
    Double
    Curvature
    Max.size
       Double
    Curvature
    Min.size
    Glass
    thickness
    Productivity
    (loads/h)
    Installed
    capacity(KVA)
    B1608E10/2
    1600xARC800
    200xARC350
    ARC1600xARC1000
    ARC500xARC400
    3.5-6/120
    30-34
    800
    B2310E12/2
    2300xARC1000
    300xARC400
    ARC2300xARC1200
    ARC600xARC500
    4-6/150
    30-34
    1000

    Productivity of double curvature glass is calculated on 4mm clear glass . Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited of space.

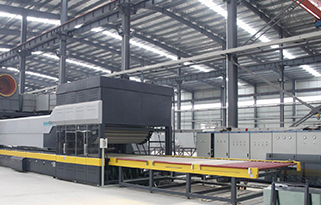

  • Company
    Shangbo Glass Limited Company
    Location
    Henan, China
    Company Profile
    Shangbo Glass Limited Company is specialized in the high-end glass processing, boasting international leading production equipments and ranking among first-class glass processing industries with high automation level and high quality products. Among its leading products are safety glass, insulating glass and Low-E glass that is environmentally friendly and energy-saving.
    Furnace Type
    LD-BE Double Bent Bi-direction Glass Tempering Furnace
    Main Products
    Tempered glass for exterior walls and interior decorations of high-end building and for doors and windows of residential houses.
