Flat Tempering Furnaces

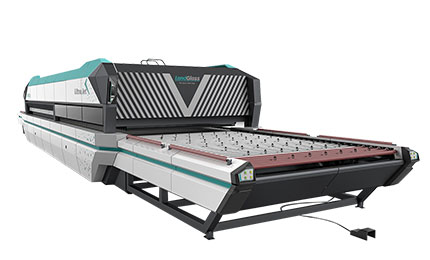

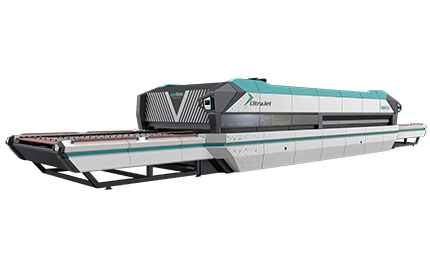

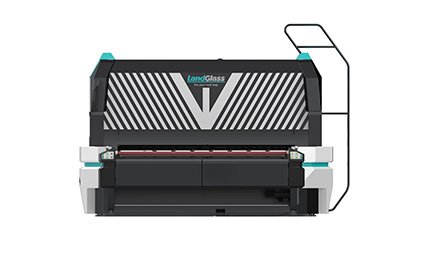

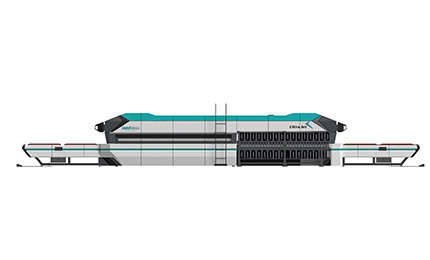

UltraJet Glass Tempering Furnace

Architecture & Furniture, Automobile, Household Appliances and Solar Power Industries, etc.
OptiFlow Convection technology
On-line and Off-line Low-E (E≥0.01) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • Inheriting the attributes of classic JetConvection technology, the new-generation UltraJet series glass tempering furnace fulfills the diversified demands from architecture and furniture, automobile, home appliance, and solar power industries for flat and bent tempered glass with both quality and capacity guaranteed.

  • UltraJet series

    National standards

    Edge waviness

    e.g. 0.09/300 mm
    (5 mm Low-E glass under normal production condition)


    For flat glass, waviness≤0.2%

    Stress marks

    No stress mark can be seen from the naked eye under natural light

     with 6 pieces of 6 mm clear glass overlaid.

    N/A

    Flatness

    Overall bow: 1/1000 mm

    For flat glass, overall bow≤0.3%

    Image distortion

    Image distortion is difficult to be observed from a distance of 30 m

    N/A

    Stress level Difference ≤±8 Mpa/m²

    N/A

    Note: Contact the sales manager for customized products with higher technical requirements.
  • UltraJet Glass Tempering Furnace


    Types

    Max. Dimension

    Min. Dimension

    Glass thickness

    Heating time ( s/mm )

    Productivity (loads/h)

    Installed capacity

    (KVA)


    Clear glass

    Low-E

    Clear glass

    Low-E

    A2436

    2440X3600

    150X350

    4-19

    29-32

    38-42

    20-22

    15-17

    800

    A2442

    2440X4200

    150X350

    4-19

    29-32

    38-42

    20-22

    15-17

    1000

    A2450

    2440X5000

    150X350

    4-19

    29-32

    38-42

    20-22

    15-17

    1000

    A2460

    2440X6000

    150X350

    4-19

    29-32

    38-42

    20-22

    15-17

    1250

    A2850

    2800X5000

    200X400

    4-19

    29-32

    38-42

    20-22

    15-17

    1250

    A3050

    3000X5000

    300X500

    5-19

    29-32

    38-42

    20-22

    15-17

    1250

    A3080

    3000X8000

    300X500

    5-19

    29-32

    38-42

    20-22

    15-17

    2000

    Note: Productivity is calculated on 5 mm clear glass and 5 mm off-line triple silver Low-E (E≤0.02) glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.
  • Company Cristalería Crevillente
    Location Spain
    Company Profile

    Aries, founded in 1983, understood that these solutions were very well suited to the business of Cristalería Crevillente, dedicated to glass for architecture. Aries works hand in hand with reference companies in the manufacture of industrial equipment and quality control devices, making a careful selection of innovative and high-performance technologies for the transformation of safety glass.

    Furnace Type  UltraJet Glass Tempering Furnace
    Main Products

    Low-E glass,  safety glass , etc.




*
*
*
*
*
*
