Combined Tempering Furnaces

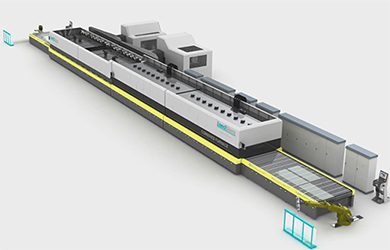

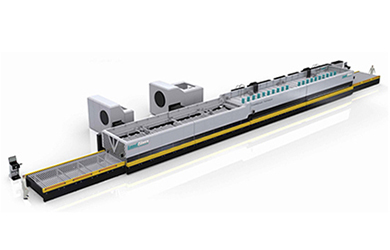

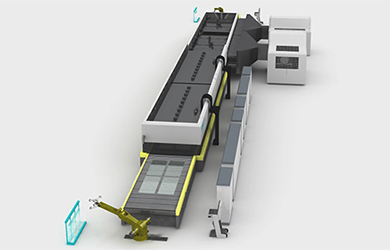

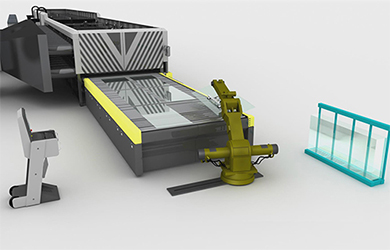

LD-AT0 JetConvection Plus Combined Flat Glass Tempering Machine

Architecture&Furniture, Automobile Industries, Household Appliances and Solar Power Industries, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • In 2008, LandGlass introduced the combined glass tempering machine to meet the increasing quality requirements for tempered glass in the architectural and household appliances markets. The LandGlass combined tempering machine has two heating furnaces that can be controlled individually. The result is a significant quality increase that overpasses the glass quality requirements of the market.

    JetConvection PlusTM Convection heating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass Jetconvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

    LD-AT Series Combined Flat Glass Tempering Machine is equipped with 2 heating sections, which can be installed with either AirStream or JetConvection heating technologies. The furnace can also be equipped with one or more chillers according to the quality and productivity requirements of the final product. The combination of 2 heating sections allows for an easy adaptation to each customer's needs, having the possibility to select different working modes that optimize final quality, productivity or maximum temperable size.

    LD-AT0 JetConvection PlusTM Combined Flat Glass Tempering Machine has two heating sections with JetConvection PlusTM heating technology applied on the top and bottom.This tempering machine ensures an excellent quality and a higher performance. Glass that can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. LD-AT0 JetConvection Combined Flat Glass Tempering Machine has two heating sections with JetConvectionTM heating technology applied on the top and on the bottom; it can temper glass with the best quality.

    2. Different working modes can be set in order to focus on quality, productivity or loading size.
    If the first heating section works as preheating furnace, it will reduce quality defects such as optical distortion, spherical bending, hot spots, white haze, etc.
    If both heating sections work as independent heating furnaces, it will largely increase throughput.
    If two heating sections work as one big heating section, it will be able to process extra large glasses.

    3. Glass tempered by this glass tempering machine is suitable for the architectural, furniture, household appliances, automotive and solar industry markets. The glass that can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc
  • LD-AT0 JetConvection Combined Flat Glass Tempering Machine
    Types
    Max.
    dimension
    Min.
    dimension
    Glass
    thickness
    Productivity
    (loads/h)
    Installed
    capacity(KVA)
    Clear
    glass
    Low-E
    A2436T0+ 2440X3600 200X400 4-19 26-30 21-26 1400
    A2442T0+ 2440X4200 200X400 4-19 26-30 21-26 1600
    A2450T0+ 2440X5000 200X400 4-19 26-30 21-26 1800
    A2460T0+ 2440X6000 200X400 4-19 26-30 21-26 2200
    A2480T0+ 2440X8000 200X400 4-19 26-30 21-26 2800
    A3050T0+ 3000X5000 300X500 5-19 26-30 21-26 2300
    A3080T0+ 3000X8000 300X500 5-19 26-30 21-26 3500

    Productivity is calculated on 5mm clear glass and 6 mm Low-E glass (E=0.08) with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.

  • Company
    Oldcastle
    Location
    USA
    Profile
    Oldcastle is the largest manufacturer of building products and materials in North America. Its tempered glass products are widely used in architectural industry, which allows it to occupy a large market share in North America. And its glass tempering machine is produced by LandGlass.
    Furnace Type
    LD-AT0 JetConvection Combined Flat Glass Tempering Machine
    Main Products
    Laminated glass, insulating glass, fireproof glass, Low-E glass, etc.

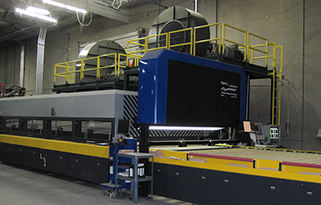

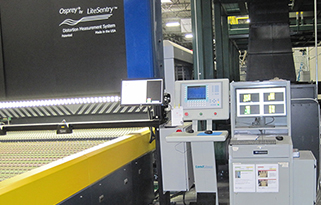

    Glass Tempering Furnace-Oldcastle-LandGlass    Glass Tempering Furnace-Oldcastle-LandGlass
*
*
*
*
*
*
