Continuous Tempering Furnaces

LD-AL AirStream Continuous Flat Glass Tempering Equipment

Architecture&Furniture, Automobile Industries, Household Appliances and Solar Power Industries, etc.
Combination of radiation and assisstant convection heating.
On-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • In 2011 LandGlass introduced the Continuous Flat Glass Tempering Equipment to satisfy the increasing demands for tempered glass in the household appliances and solar markets. Because of its design, the equipment guarantees a stable operation and outstanding product quality.Thanks to this leap in quality, our Continuous Flat Glass Tempering Equipment had been installed in the leading international glass processing companies in 2012.

    AirStreamTM Radiation Heating plays a supportive role during the process. Compressed air is injected into the heating furnace to aid the heating process of the top surface of the glass, which ensures heating uniformity for on-line Low-E glass, and other glass types.

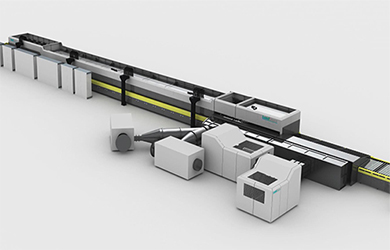

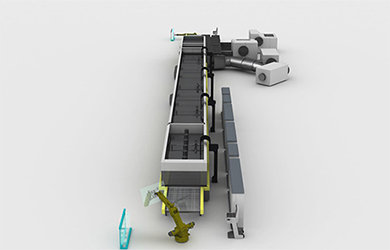

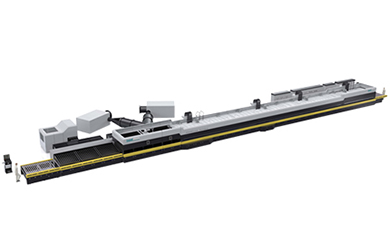

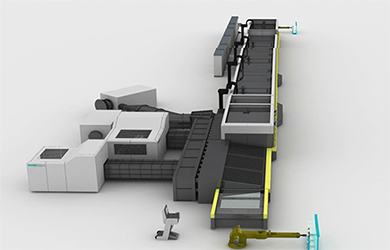

    LD-AL AirStreamTM Continuous Flat Glass Tempering Equipment adopts AirStreamTM heating technology. Glass tempered by this tempering equipment is suitable for flat glass for architectures, furniture, household appliances and solar markets. The glass that can be tempered includes: on-line Low-E glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. Longer heating and tempering sections ensure that glass sheets can be heated to the correct temperature and that it can be tempered and cooled quickly without oscillation.

    2. The flexible driving speed control, selects the right speed for each of the stages of the process. The user can choose between logic servo controlled continuous mode or complete continuous mode according to the size of glass sheets.

    3. Continuous running blowers ensure energy savings.

    4. Glass doesn’t oscillate inside the heating section, what minimizes quality defects such as white haze, scratches, waviness, etc.

    5. Continuous tempering technology ensures much higher productivity, suitable for tempering large volumes of flat glass sheets for the architectural, furniture, household appliances, automotive and solar industry markets.
  • LD-AL AirStream Continuous Flat Glass Tempering Equipment
    Types
    Max.
    dimension
    Min.
    dimension
    Glass
    thickness
    Productivity
    (m2//h)

    Installed
    capacity(KVA)
    A1225L
    1200X2500
    100X350
    3-6/4-8
    290
    1600
    A1230L
    1200X3000
    100X350
    3-6/4-8
    300
    1600
    A1525L
    1500X2500
    100X350
    3-6/4-8
    350
    2000
    A1530L
    1500X3000
    100X350
    3-6/4-8
    360
    2000
    A1625L
    1600X2500
    200X350
    3-6/4-8
    380
    2500
    A1630L
    1600X3000
    200X350
    3-6/4-8
    390
    2500
    A1730L
    1700X3000
    200X350
    3-6/4-8
    410
    3000
    Productivity is calculated on 4mm clear glass with 100% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.

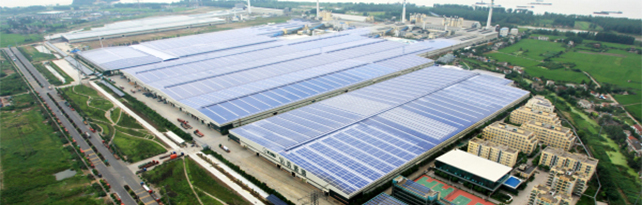

  • Company
    Xinyi Glass Holdings Limited
    Location
    Hongkong,China
    Company Profile
    Xinyi Glass Holdings Limited, a major supplier in the global supply chain, was founded in 1988 and listed on the main board of the Hong Kong Stock Exchange in February 2005 The group has established six major production bases located in Dongguan, Shenzhen, Jiangmen, Wuhu, Tianjin and Yingkou, with a total area of over 5 million ㎡ and 15,000 employees in 33 branches all around the world. It is specialized in the production of float glass, auto glass, architectural glass and photovoltaic glass and its products have been sold to 100 countries and regions around the globe.
    Furnace Type

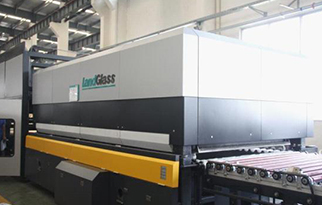

    LD-AL AirStream Continuous Flat Glass Tempering Equipment
    Main Products
    Low-iron Patterned Glass(raw glass sheet, tempered glass sheet)、AR photovoltaic Glass、TCO Glass、Low -iron Float Glass and so on.

    Glass Tempering Furnace-Xinyi-LandGlass
*
*
*
*
*
*
