Bent Tempering Furnaces

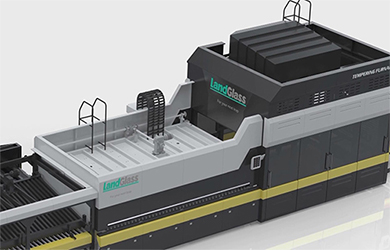

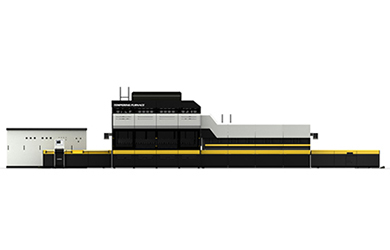

LD-B AirStream Bent Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Combination of radiation and assisstant convection heating.
On-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • After the excellent results obtained from the first flat glass tempering furnace, LandGlass started committing R&D resources to develop the B bent glass tempering equipment. The first name it received was the hard-roller bending tempering furnace, because of the steel driving rollers in the bending section. The small pieces of bent tempered glass that the furnace produces satisfy the demand of the automotive and furniture markets.

    Our engineering team worked for years to develop the bending mechanism for this furnace, from a simple manual bending mechanism to a precise semi-automatic bending system. This is one of the most popular LandGlass’ products.

    AirStreamTM Radiation Heating plays a supportive role during the process. Compressed air is injected into the heating furnace to aid the heating process of the top surface of the glass, which ensures heating uniformity for on-line Low-E glass, and other glass types.

    LD-B AirStreamTM Single Curvature Glass Tempering Furnace adopts AirStreamTM Heating Technology. It is an optimum system to bend and temper single curvature glass in small quantities. Glass tempered by this tempering furnace is suitable for the architectural and furniture markets. The glass that can be tempered includes: on-line Low-E glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

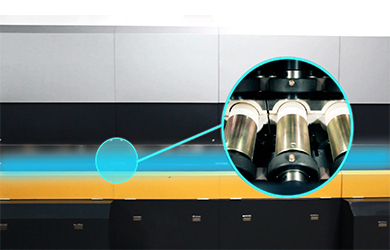

  • 1. Hard-shaft bending roller technology bends glass lengthwise.

    2. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.

    3. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.

    4. It can bend and temper small volumes of highly accurate single curvature glass for the automotive and household appliances market.
  • LD-B AirStream Bent Glass Tempering Furnace
    Types
    Max.
    dimension
     Min.
    dimension
    Glass
    thickness
    Min.
    radius
    Productivity(pieces/h)
    Installed
    capacity(KVA)
    B09075/4
    900xARC750
    150xARC300
    3.2-5
    1000
    70-90(3.5mm)
    630
    B1208/3
    1200xARC800
    150xARC300
    3.2-5
    1000
    40-43(5mm)
    1000
    B1510/2
    1500xARC1000
    150xARC300
    3.2-5
    1000
    25-29(5mm)
    1000
    B2015/2
    1500xARC1500
    200xARC350
    4-6
    1000
    25-29(5mm)
    1000
    Productivity is calculated on clear glass. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited of space.
  • Company
    Vidrieria Oriental
    Location
    Bolivia, South America
    Company Profile
    The Oriental Glassmaking Company is located in the city of Santa Cruz, Bolivia. The company is specialized in the production of tempered glass for the use of architecture, furniture and decorations. With advanced equipments and skilled workers, the company can produce high quality glass products to meet the demand of customers.
    Furnace Type
    LD-B Series Bent Glass Tempering Furnace
    Main Products
    Tempered glass for autos, architecture, furniture, stained glass, etc.
