Bent Tempering Furnaces

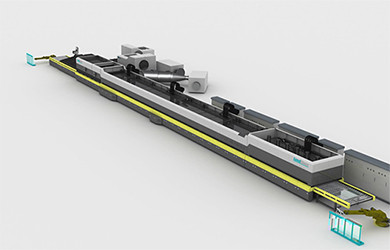

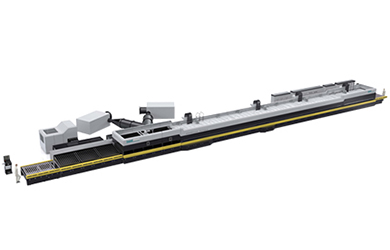

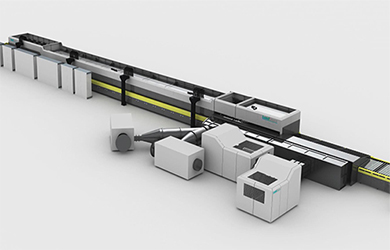

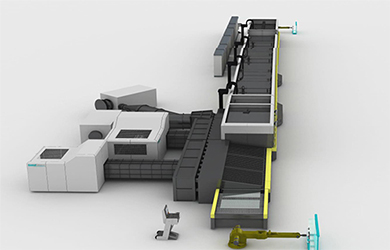

LD-BL JetConvection Plus Continuous Bent Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Combination of convection and radiation heating.
On-line and Off-line Low-E (E=0.03) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
Leave Message
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • After the Continuous Flat Glass Tempering Furnace was successfully developed, LandGlass developed the Continuous Bent Glass Tempering Furnace in 2013, by combining B type hard-roller bending technology and continuous tempering technology. This furnace can produce small and medium-sized single curvature bent tempered glass for the automotive and for the furniture markets.This type of furnace is configured with forced convection units at its front end and can temper off-line Low-E and screen printed glass rapidly and evenly.

    AirStreamTM Radiation Heating plays a supportive role during the process. Compressed air is injected into the heating furnace to aid the heating process of the top surface of the glass, which ensures heating uniformity for on-line Low-E glass, and other glass types.

    JetConvection PlusTM Convection heating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass JetConvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

    LD-BL JetConvection PlusTM Continuous Bent Glass Tempering Furnace adopts JetConvection PlusTM and AirStreamTM heating technologies. It can temper large volumes of single curvature bent glass for architectures, furniture, automotive and household appliances industries. Glass that can be tempered includes: on-line and off-line Low-E (E=0.03)glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. Perfect combination of B bending technology and continuous tempering technology.

    2. The bending and tempering section guarantees accurate radii; it doesn’t need continuous adjustments.

    3. It can bend and temper large volumes of highly accurate single curvature glass for the automotive and household appliances market.

    4. Equipped with JetConvection heating technology, it can bend and temper online and off-line Low-E (e=0.03) glass, and other highly demanding glass.
  • LD-BL JetConvection Plus Continuous Bent Glass Tempering Furnace
    Type
    Max. Loading
    Dimension
    Min. Loading Dimension
    Thickness
    Min. Radius
    Productivity
    (pcs / h)
    Installed Capacity
    (KVA)
    B1208LJ+
    1250xARC800
    150xARC300
    3.2-4
    1200
    450
    2500
    B2008LJ+
    2000xARC800
    150xARC300
    3.2-4
    1200
    450
    3000
    Productivity is calculated on 3.2mm clear glass. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.
  • Company
    Xinsheng Industrial Limited Company
    Location
    Hubei, China
    Company Profile
    Xinsheng Industrial Limited Company is a modern enterprise specialized in glass processing to provide flat and bent tempered glass mainly for architecture, furniture and automobile industries. Giving top priority to credibility, quality and service, Xinsheng Industrial Limited Company offers the best products to clients.
    Furnace Type
    LD-BL Continuous Bent Glass Tempering Furnace
    Main Products
    Tempered glass for autos, architecture, furniture, household appliances, doors and windows and so on.
